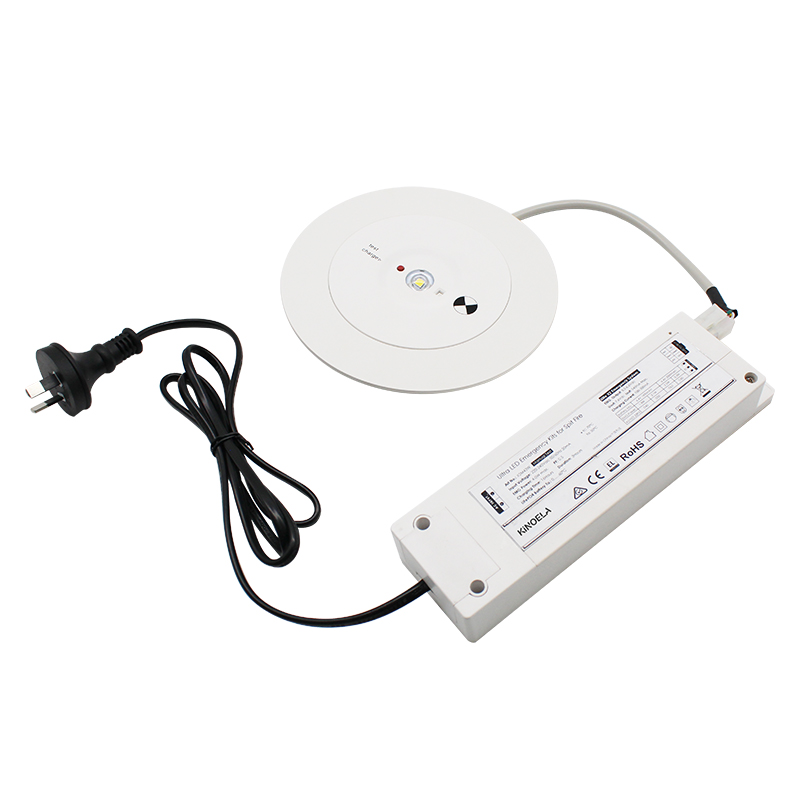

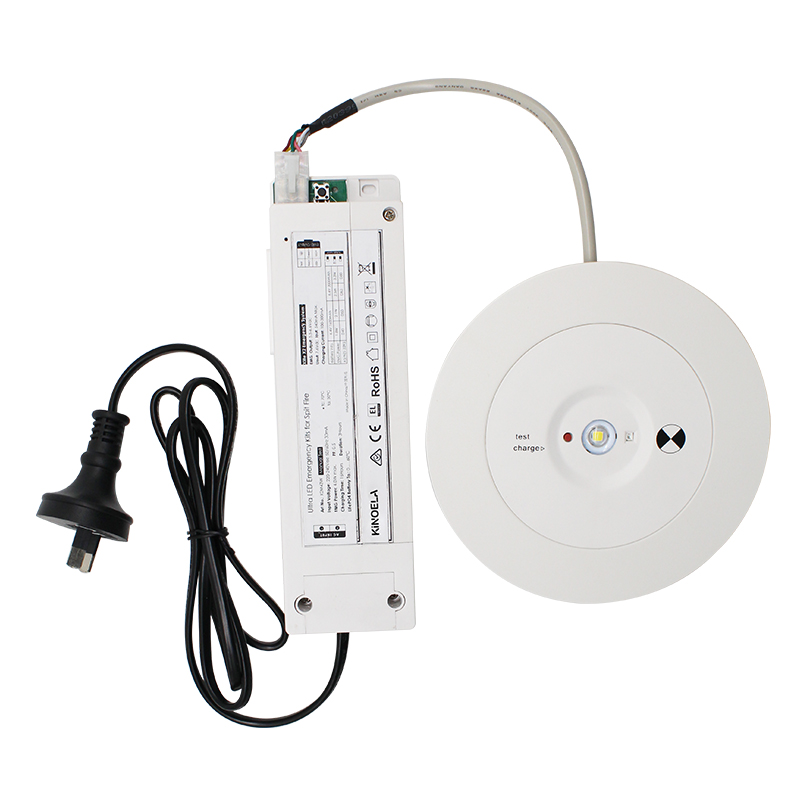

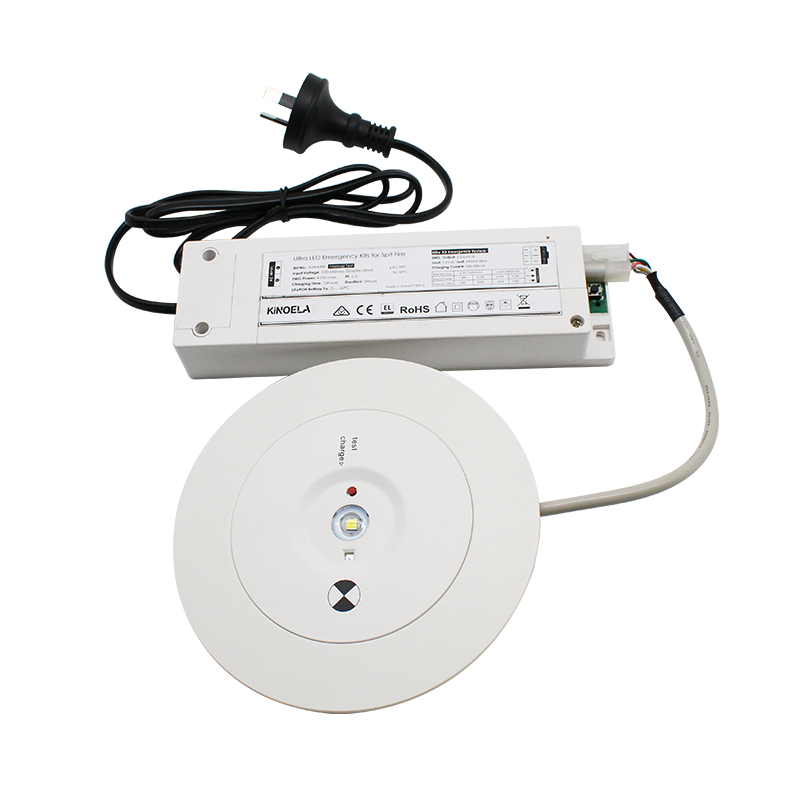

Xlite X2 is an innovative solution for emergency lighting, complete with an integrated driver and LiFePO4 battery for anti-panic lighting.
This cutting-edge product features a recessible disc designed to seamlessly fit into a ceiling cavity with a 75mm cutout.

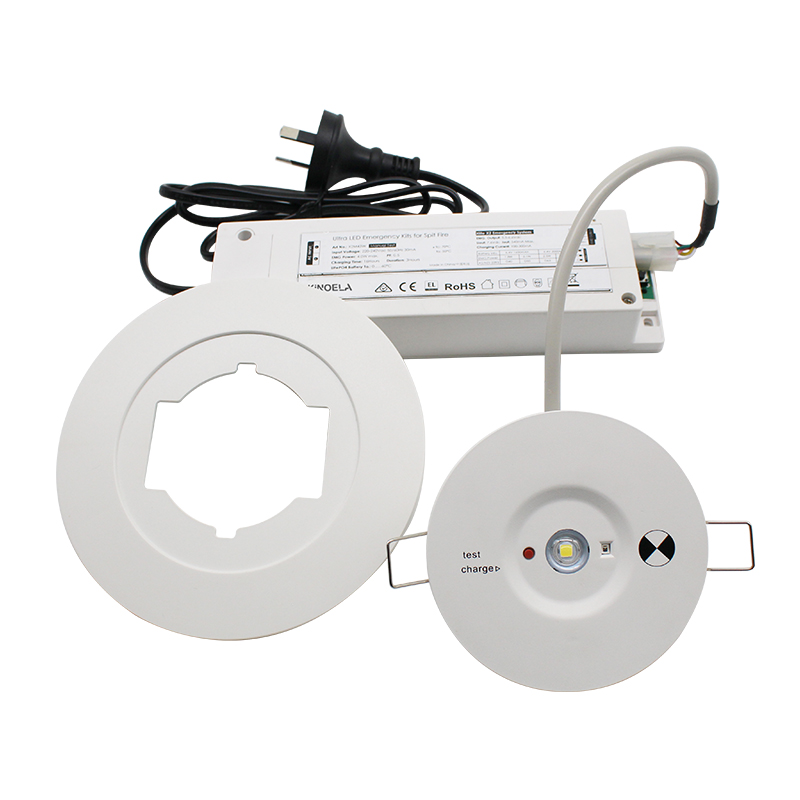

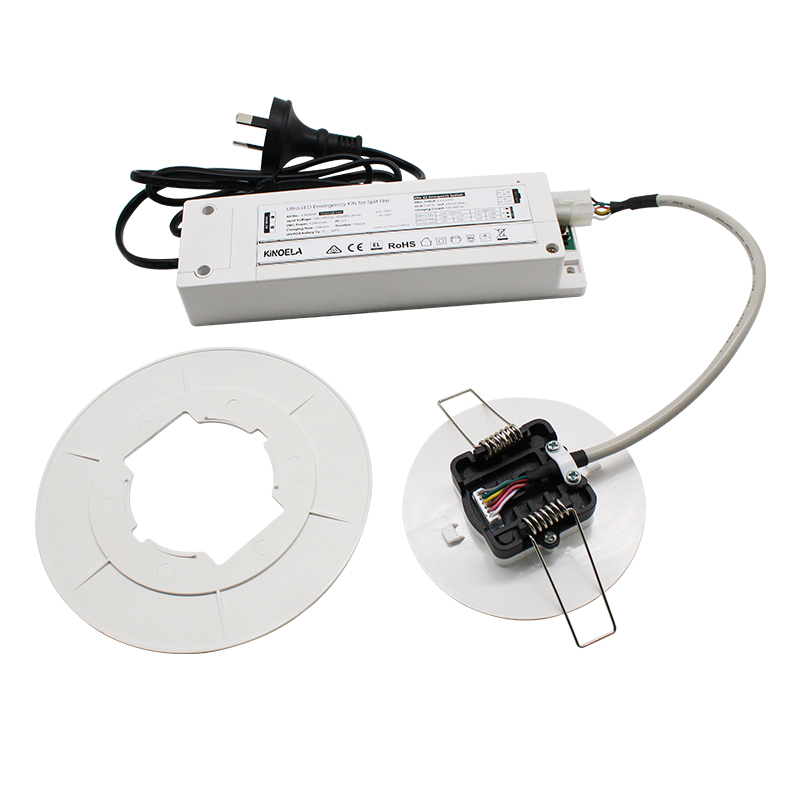

For larger cutouts (up to 150mm), a supplied adapter disc can be interlocked to cover the space.
Using high-quality Bridgelux SMD LED Chips, the Xlite X2 emits an ultra-bright source of illumination, strategically intended to alleviate panic and establish a safe, distinct, and efficient egress path during emergencies.
Enhanced with an upgraded optical system, the Xlite X2 aligns with European IEC60598 and AS/NZS2293.3 standards, meeting the D63(400lm) / D80(475lm) standard.
The LiFePO4 6.4V 1.6Ah battery pack ensures over 3 hours of emergency load, providing steadfast illumination during power outages.
To better meet different installation requirements for ceilings, the Xlite X2 is available in three colors of lamp housing: white, black, and grey.
Ideal for a wide range of internal general applications, including offices, shopping centers, commercial properties, and residential buildings, the Xlite X2 is the go-to choice for emergency lighting needs.
Choose the Xlite X2 to ensure safety and visibility in open areas during emergencies.
Relevant standard
IEC 60598-1:2014+A1:2017
IEC 60598-2-22:2014+A1:2017
AS/NZS60598.1:2017+A1:2017+A2:2020
AS 60598.2.22:2019
AS/NZS 2293.3:2018+A1:2021
Bodofor® LiFePO4 Battery Pack
4 years warranty
– Intelligent battery management technology via smart IC:
over-charge, over-current, short-circuit and deep discharge protection for battery.
DATASHEET
| Item | Part Number | X2M33W/ B | X2M43W/ B |
| Description | D63/D80 Premium Recessed 2-in-1 LED Spit Fire Emergency Light | ||
| Working | Mode of Operation | Non-Maintained | |
| Input | Voltage& Frequency | 220-240Vac , 50/60HZ | |
| Installation | Complete with 1 .2m 1ex cable & Ac plugs | ||
| Output | Light Source | Bridgelux SMD 1X5W | |
| Luminous Flux | 400lm±5% | 475lm±5% | |
| Power Consumption | 3 .0w(Standy ) , 2 .4W( Emergency) | 4 .0w(Standy ) , 3 . 6W( Emergency) | |
| Emergency Duration | > 180 minutes | ||
| Controls | Charger | 16hrs charging time with the latest temperature controlled BMS | |
| Emergency | Protection | Overcharge , low voltage disconnect , overcurrent , short circuit | |
| Testing Facility | Manual Test | ||
| Indicators | Battery charger green LED , Function failure through red LED. | ||
| Physical | Material | 850℃ Glow wire test Flame-retardant polycarbonate | |
| Mounting | Recessed-ceiling , 75-125mm cut-out | ||
| Finishing Color | White or black | ||
| Dimensions LxWxH | Disc:95mm/ 145mm diameter, Height:34mm | ||
| IP Rating | IP20 | ||
| Weight | 360g | ||
| Warranty | 5 years on product , 4 years on battery | ||
| Environment | Operating Temperature | 0° to 50° C | |
| Relative Humidity | 0 to 95% | ||
| Compliance | Standards | SAA/ RCM , IEC 60598-1 , IEC 60598-2-2 ,AS/NZS 2293 .3 | |
| AS/NZS 2293 Classification | C0 D63 , C90 D63 | C0 D80 , C90 D80 | |
| Accessories | Replaceable Battery | P/ N : 2116-04Bodofor® 18650 LiFe PO4 6 .4V 1600mA 04 | |
※ Central Battery Optional
Suitable for central battery applications that use a nominal AC or DC supply of 110V to 240V that includes a hold-of input toinhibit the LED driver output when a mains supply is connected.

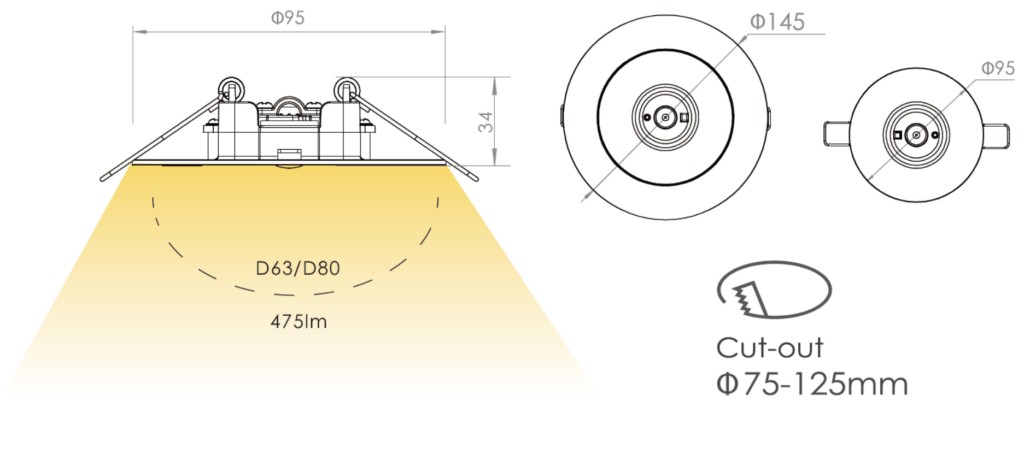

Dimensions(Unit:mm)
