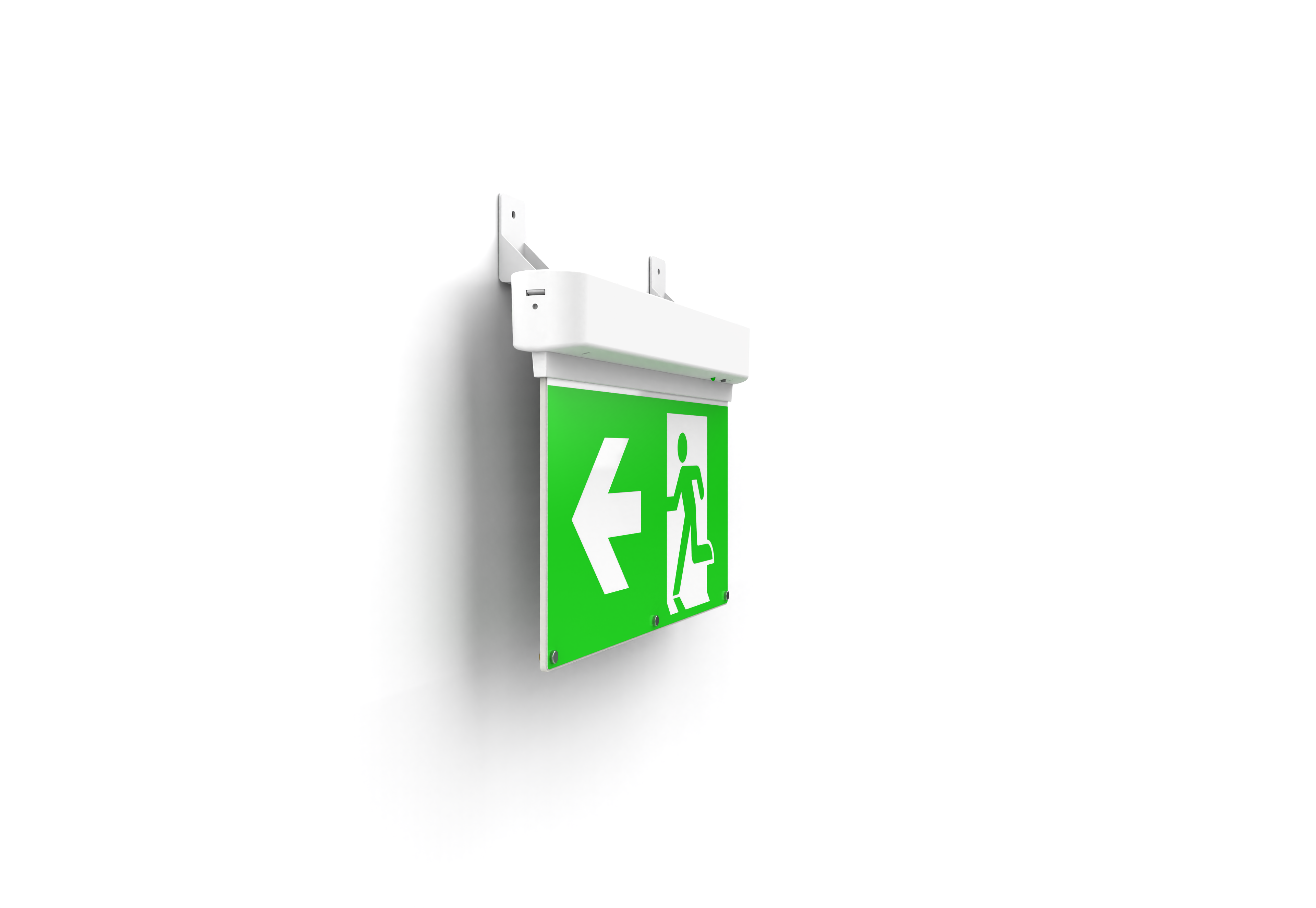

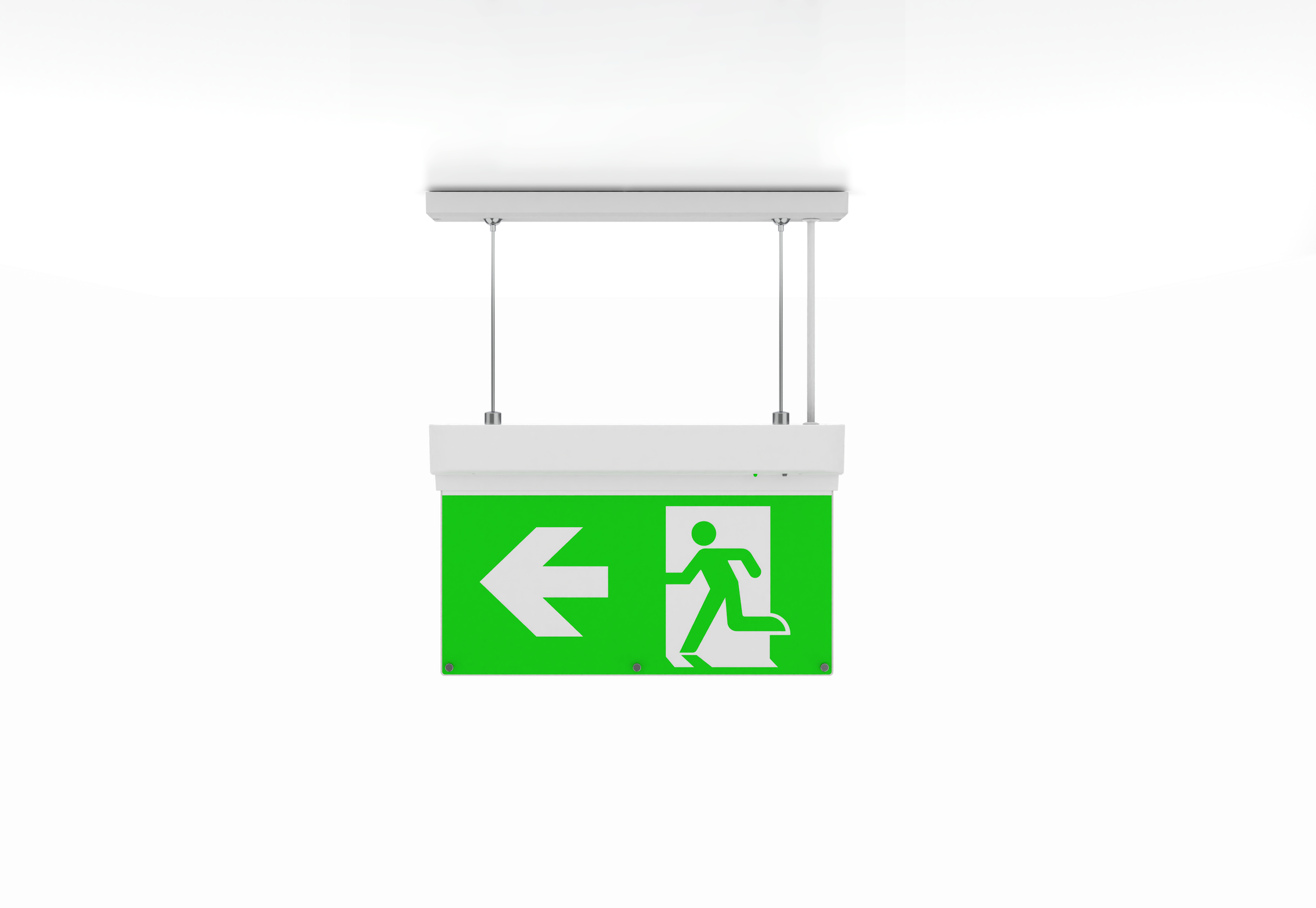

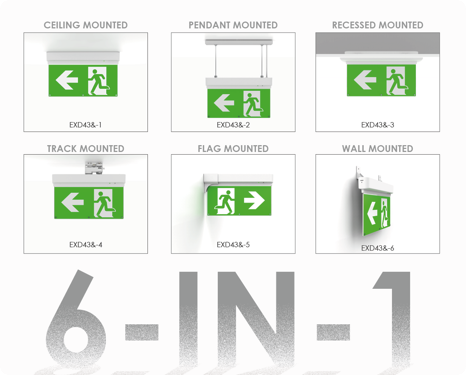

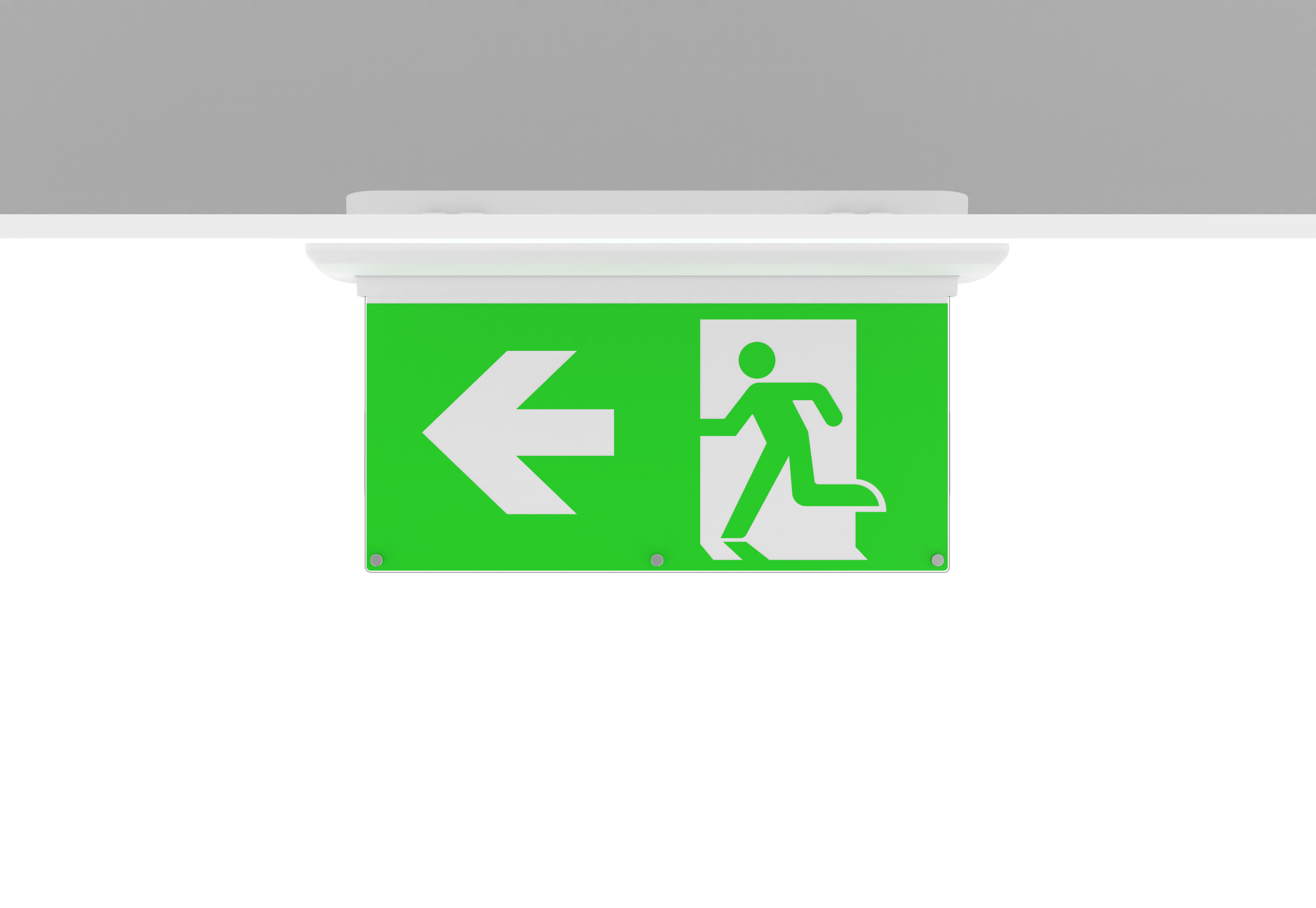

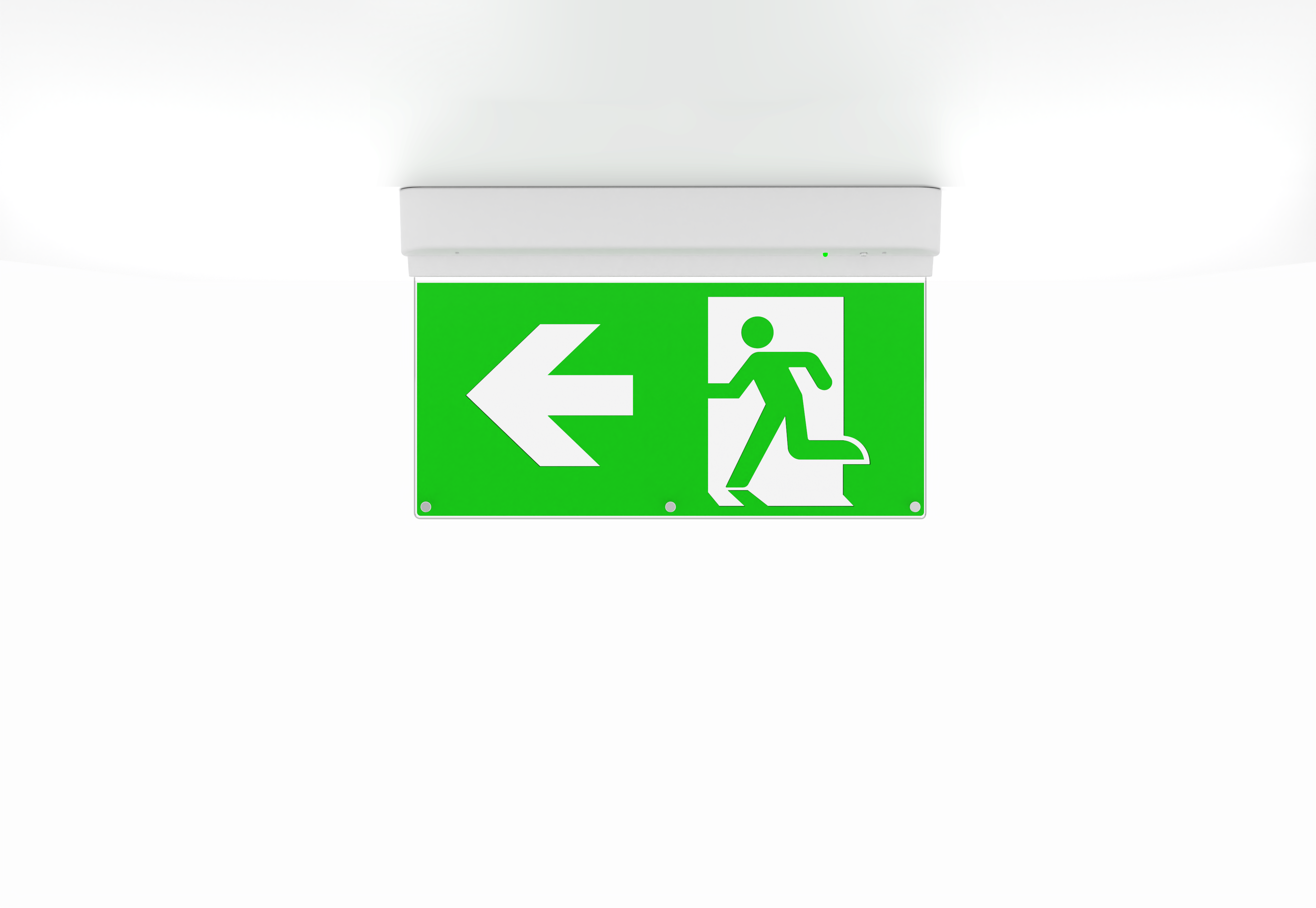

Xport E2 is design with 4-in-1 installation including Surface ceiling mounted, wall mounted, recessed mounted, suspending mounted emergency exit sign combines cutting-edge technology with sleek design, offering unparalleled safety and functionality.
Equipped with Bridgelux SMD LEDs, ensuring high brightness and energy efficiency.
Available in both black and white finishes to seamlessly blend with any decor.
Choose between Self-test and Manual test versions to suit your maintenance preferences.
Designed with a clear viewing distance of up to 30 meters, providing reliable guidance in emergencies. Delivers a robust 3-hour emergency operation time, ensuring prolonged safety and visibility.
Powered by a self-contained LiFePO4 3.2V 1600mAh battery, Xport E2 offering an emergency power of 1W and an emergency duration of up to 3 hours.
Xport E2 emergency exit sign is an ideal choice for various commercial and industrial settings, offering reliable performance and modern aesthetics.
Ensure safety and compliance with this state-of-the-art emergency lighting solution.
Relevant standard
EN55015
EN61347
EN60598-2-22
IEC62133/EN62620
IEC 60570:2003+A1:2017+A2:2019
Bodofor® LiFePO4 Battery Pack
4 years warranty
– Intelligent battery management technology via smart IC:
over-charge, over-current, short-circuit and deep discharge protection for battery.
DATASHEET
| Item | Part Number | E2M33W/ B | E2S33W/ B |
| Description | 4-in-1 LED Emergency Exit Escape Sign Luminaire | ||
| Working | Mode of Operation | Maintained & Non-maintained | |
| Input | Voltage& Frequency | 220-240Vac , 50/60HZ | |
| PowerConsumption | 3W | ||
| Output | Light Source | Bridgelux High Lumen SMD2835 | |
| Luminous Flux | 60lm ( Maintained), 200lm ( Emergency) | ||
| Emergency Power | 1 .0w | ||
| Emergency Duration | > 180 minutes | ||
| Controls | Charger | 24hrs intelligent 3-stage charger with battery management system | |
| Emergency | Protection | Overcharge , low voltage disconnect , overcurrent , short circuit | |
| Testing Facility | Manual test | Self test | |
| Indicators | Battery charger green LED , Function failure through red LED. | ||
| Physical | Material | 850℃ Glow wire test Flame-retardant polycarbonate | |
| Finishing Color | White OR Black | ||
| Dimensions LxWxH | 347mm x 44mm x 212mm | ||
| IP Rating | IP20 | ||
| Weight | 518g | ||
| Warranty | 5 years on product , 4 years on battery | ||
| Environment | Operating Temperature | 0° to 50° C | |
| Relative Humidity | 0 to 95% | ||
| Compliance | Standards | CE/UKCA , IEC 60598-1 , IEC 60598-2-2 , IEC60570 | |
| Viewing distance | 30M | ||
| Accessories | Replaceable Battery | P/ N : 1116-01 | Bodofor® 18650 LiFe PO4 3 .2V 1600mA 01 | |
※ Central Battery Optional
Suitable for central battery applications that use a nominal AC or DC supply of 110V to 240V that includes a hold-of input toinhibit the LED driver output when a mains supply is connected.

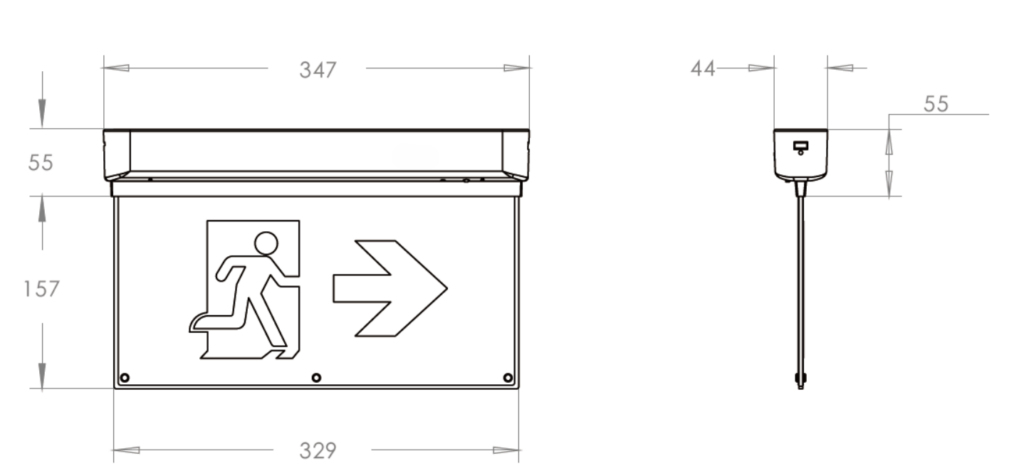

Dimensions(Unit:mm)
