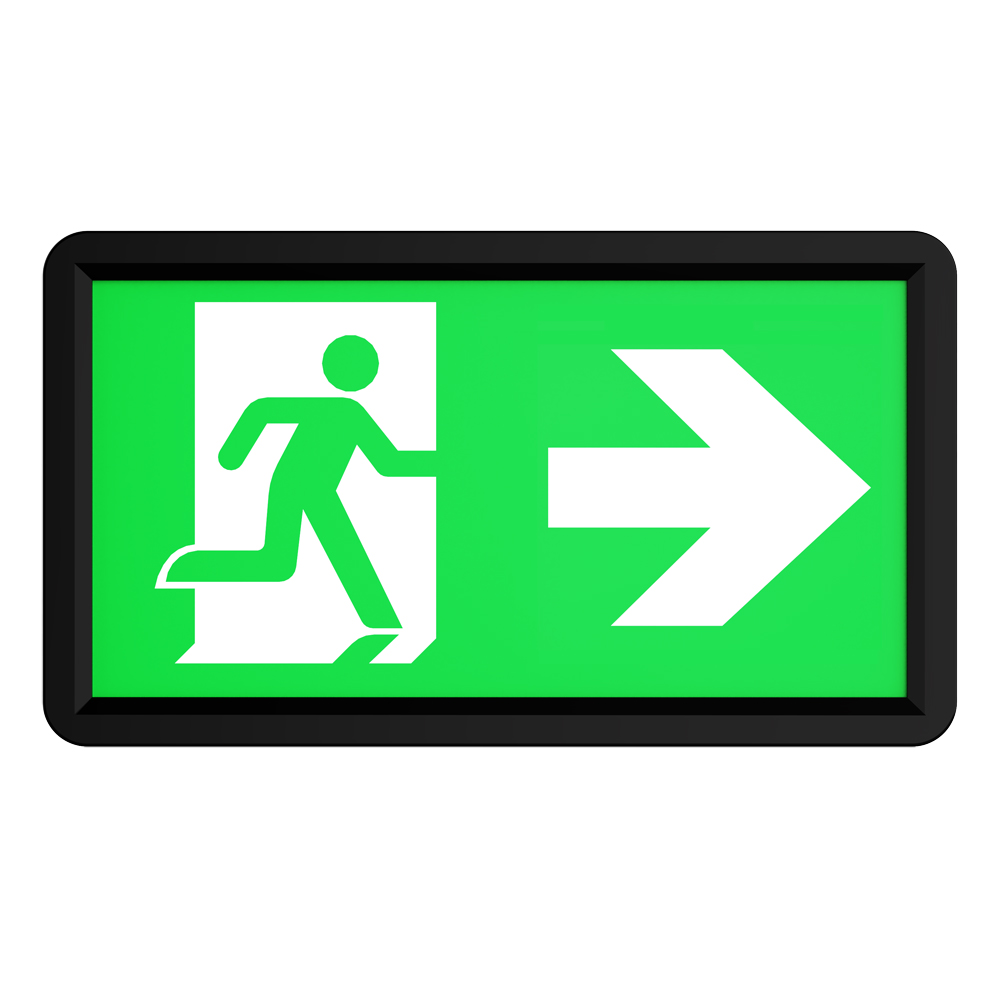

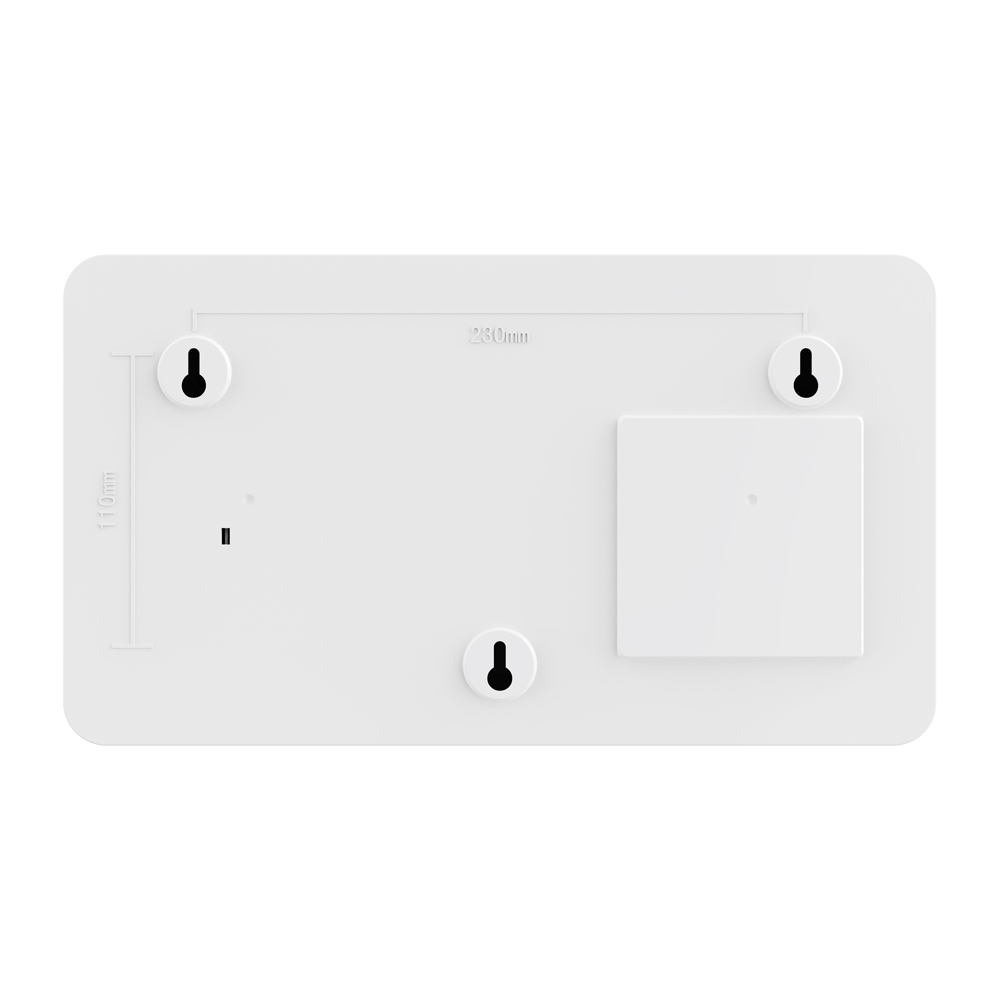

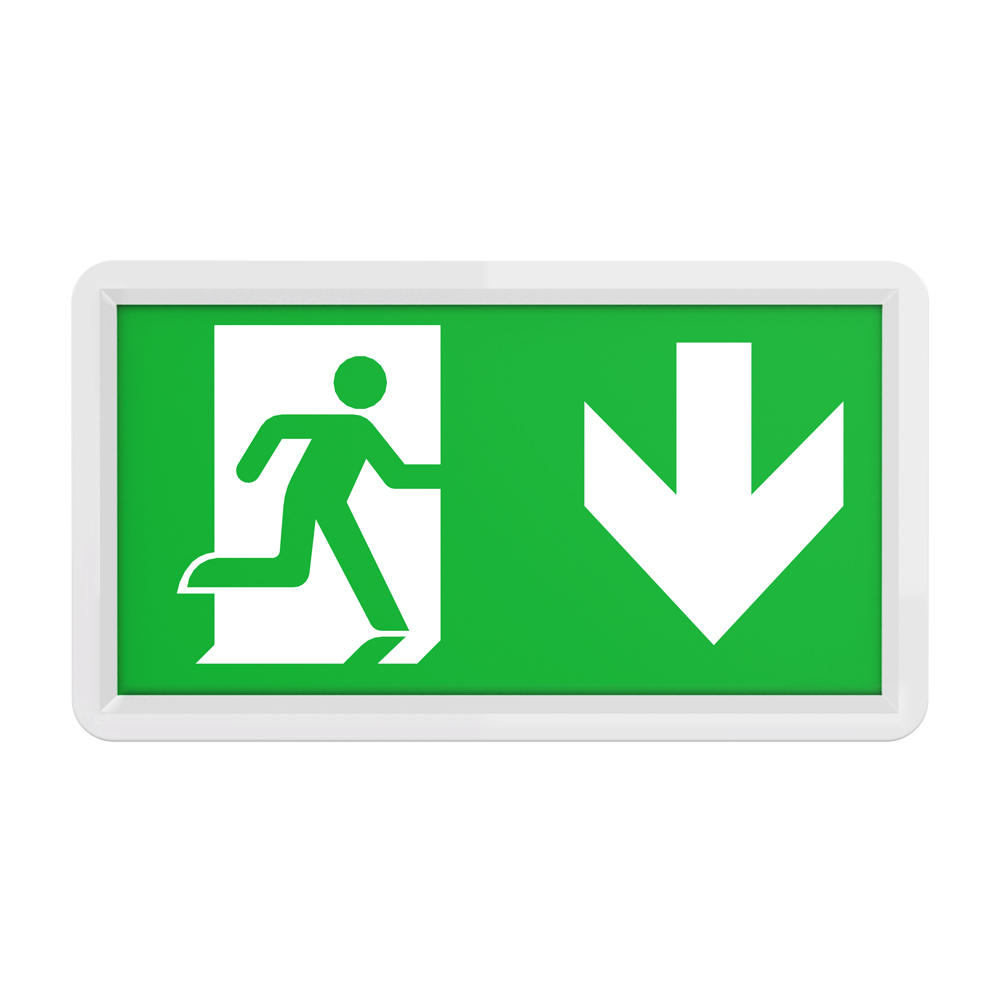

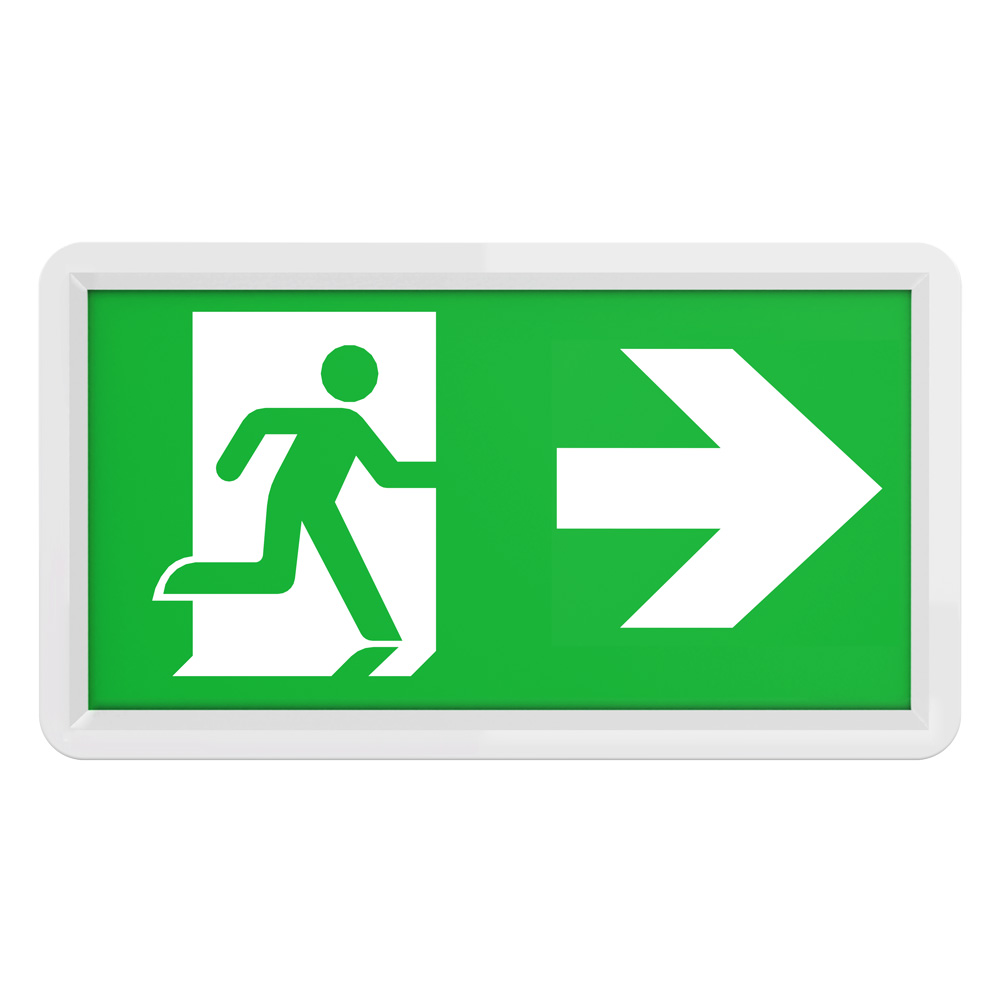

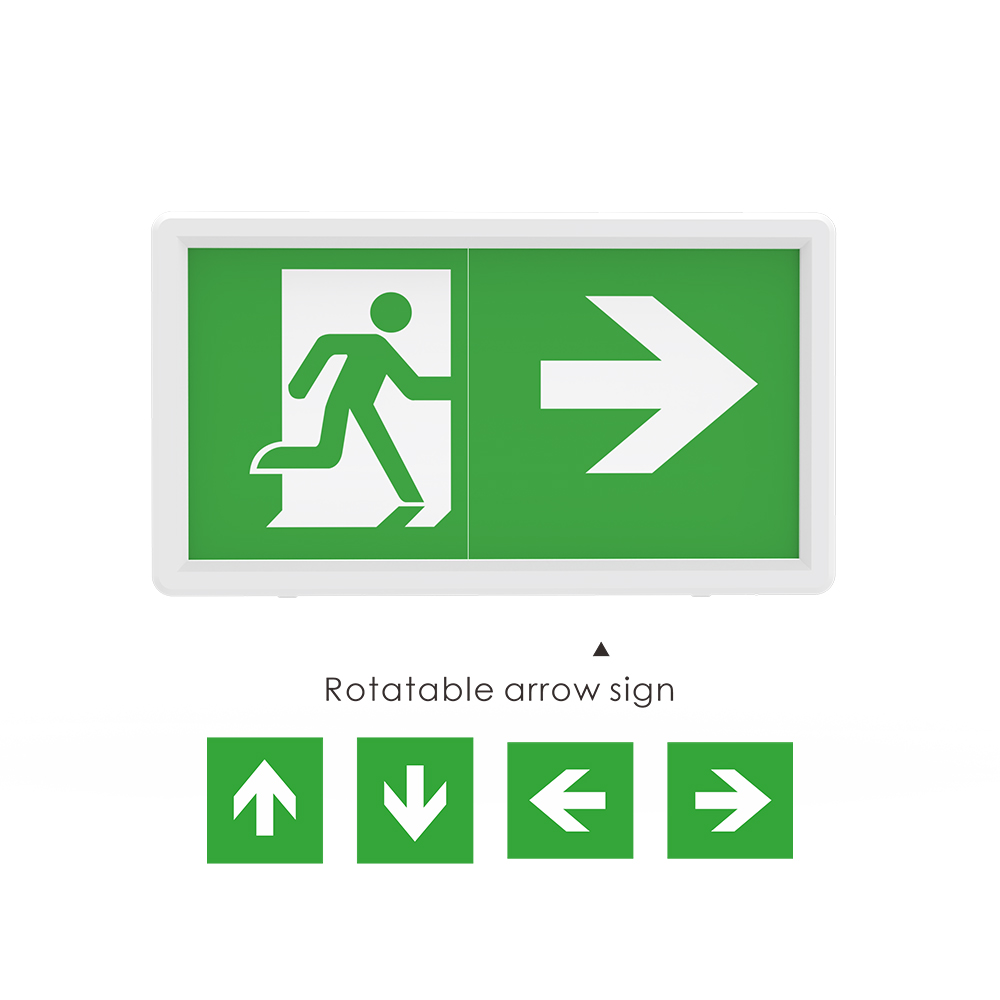

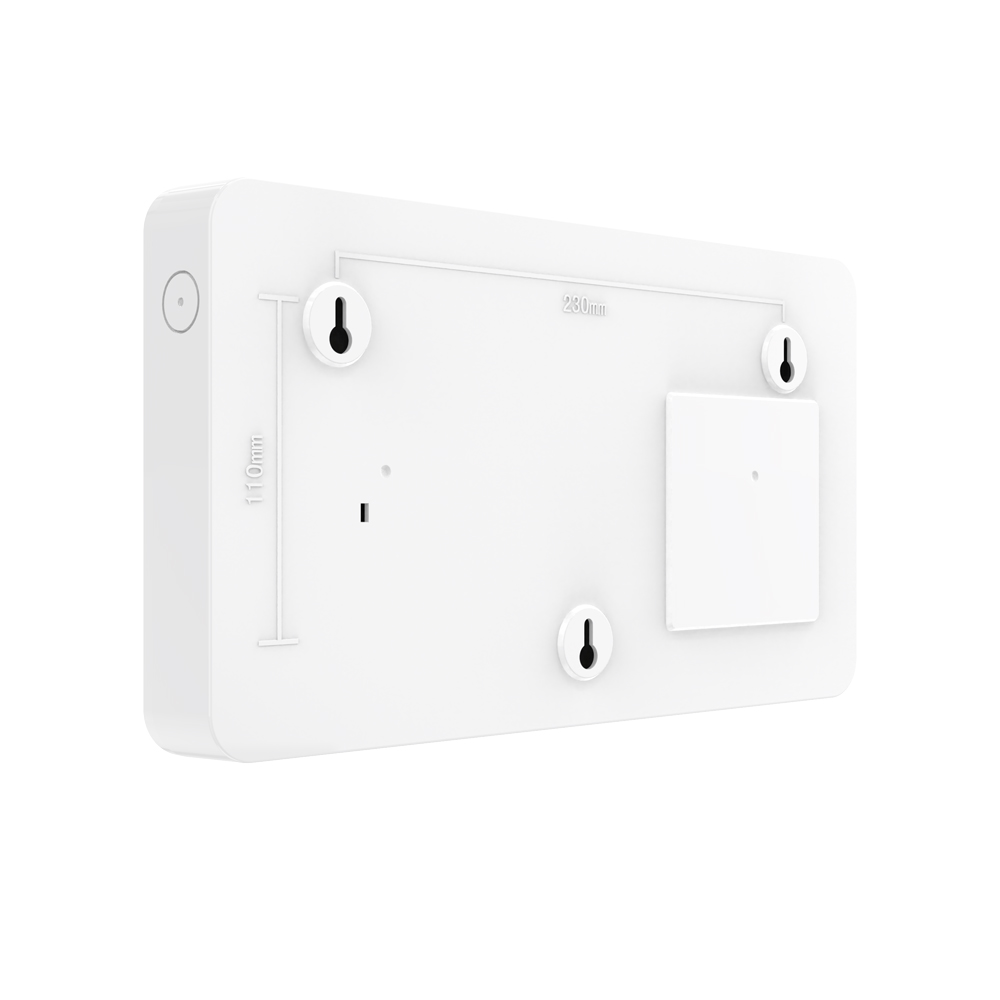

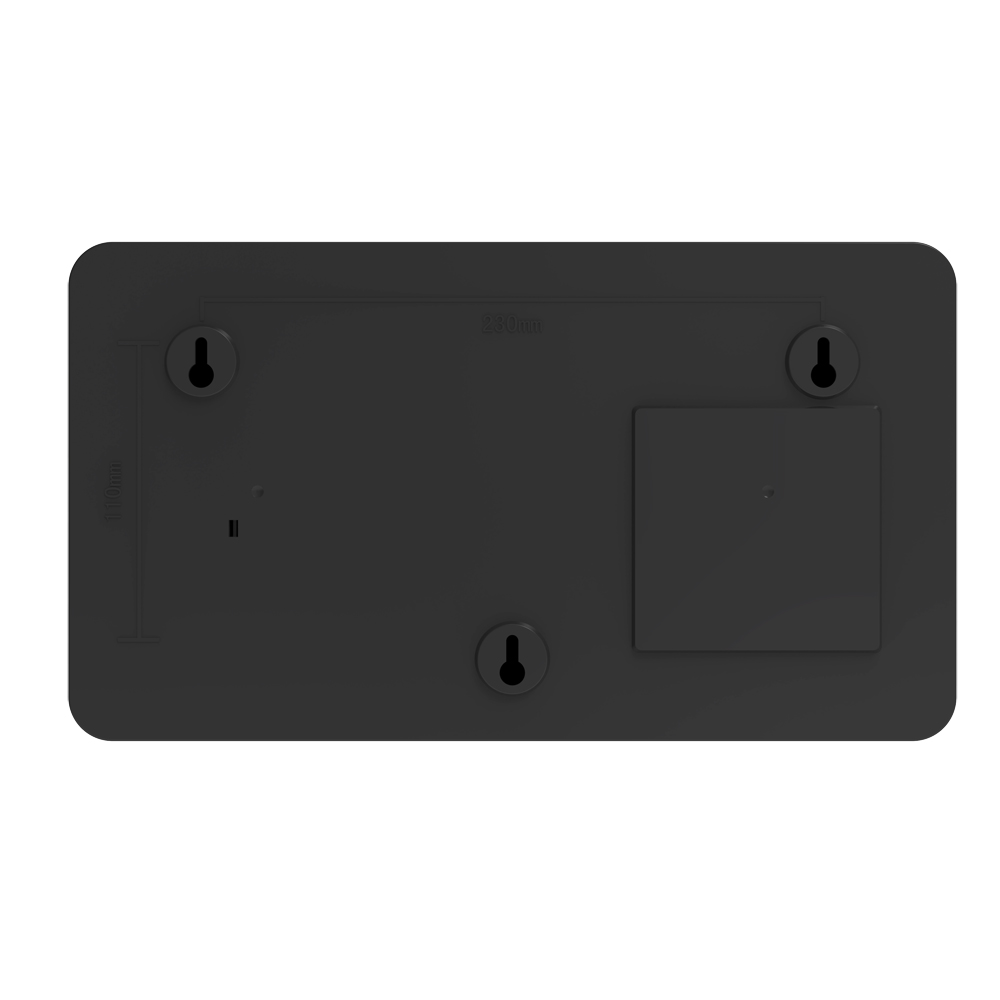

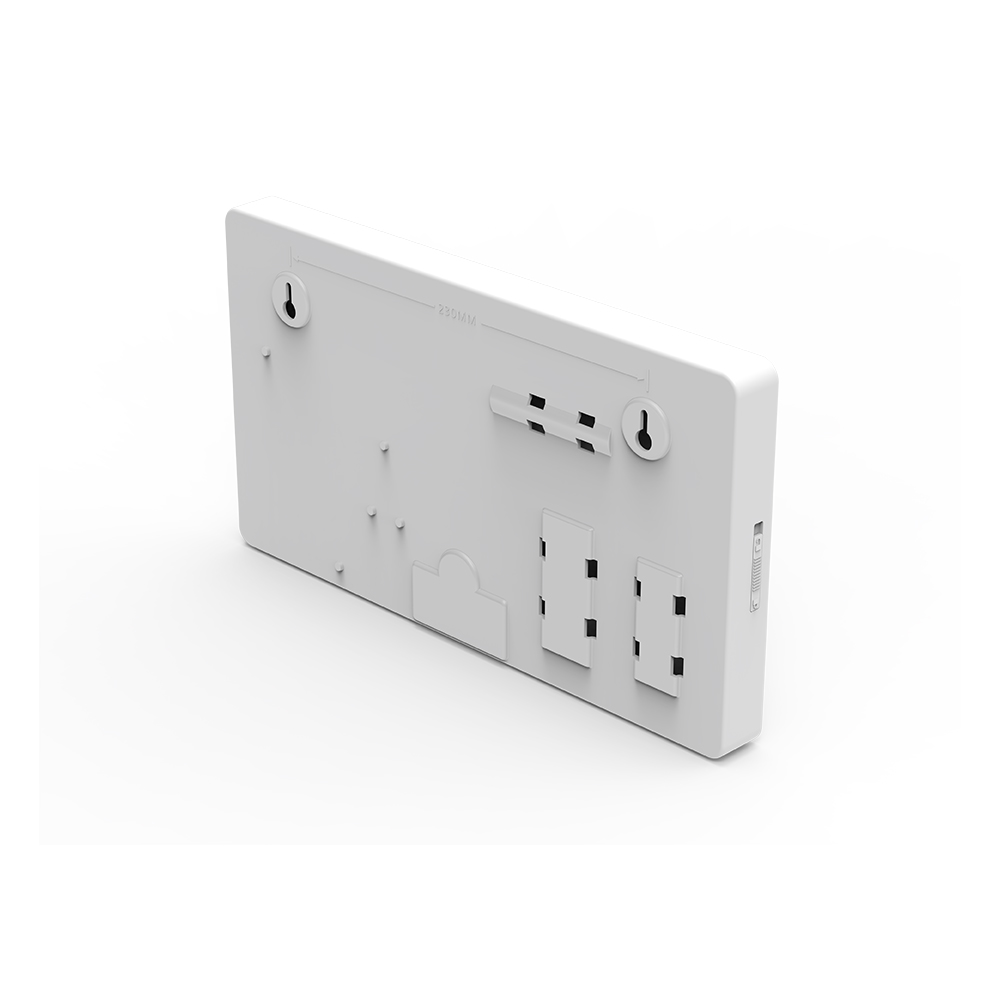

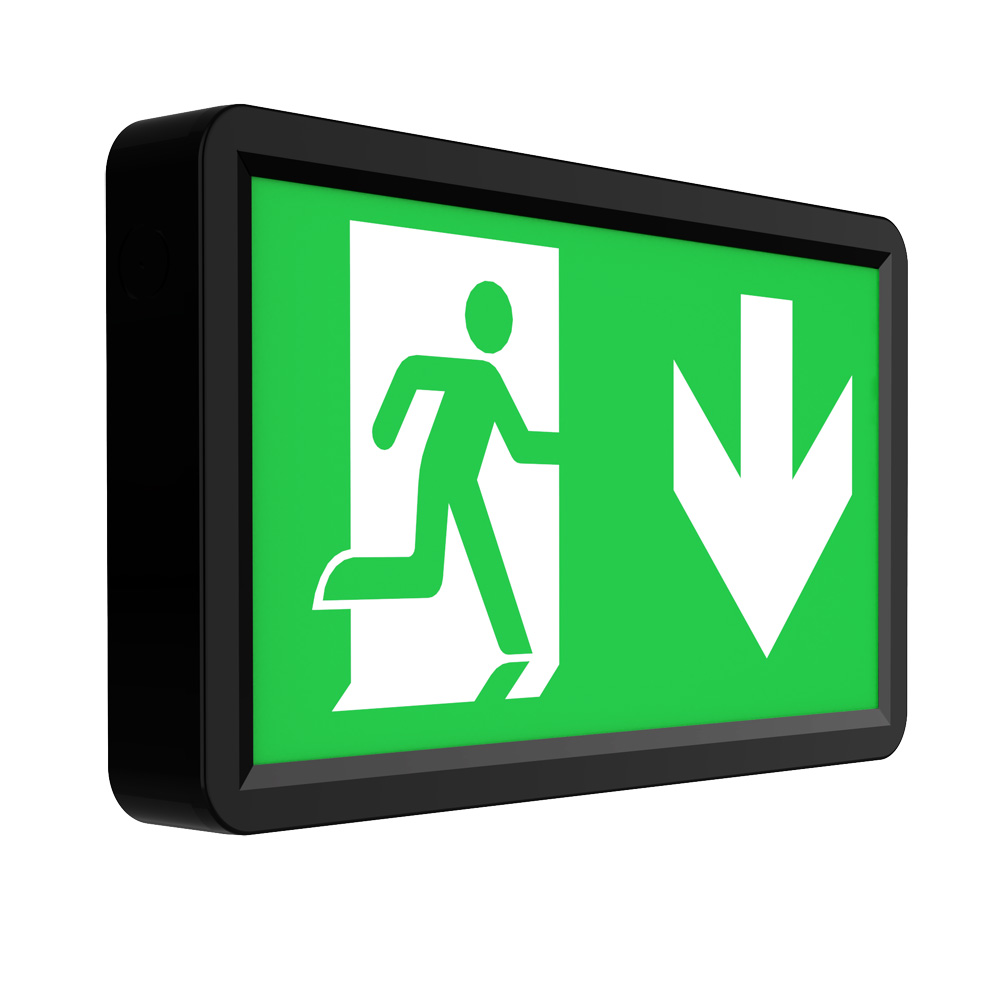

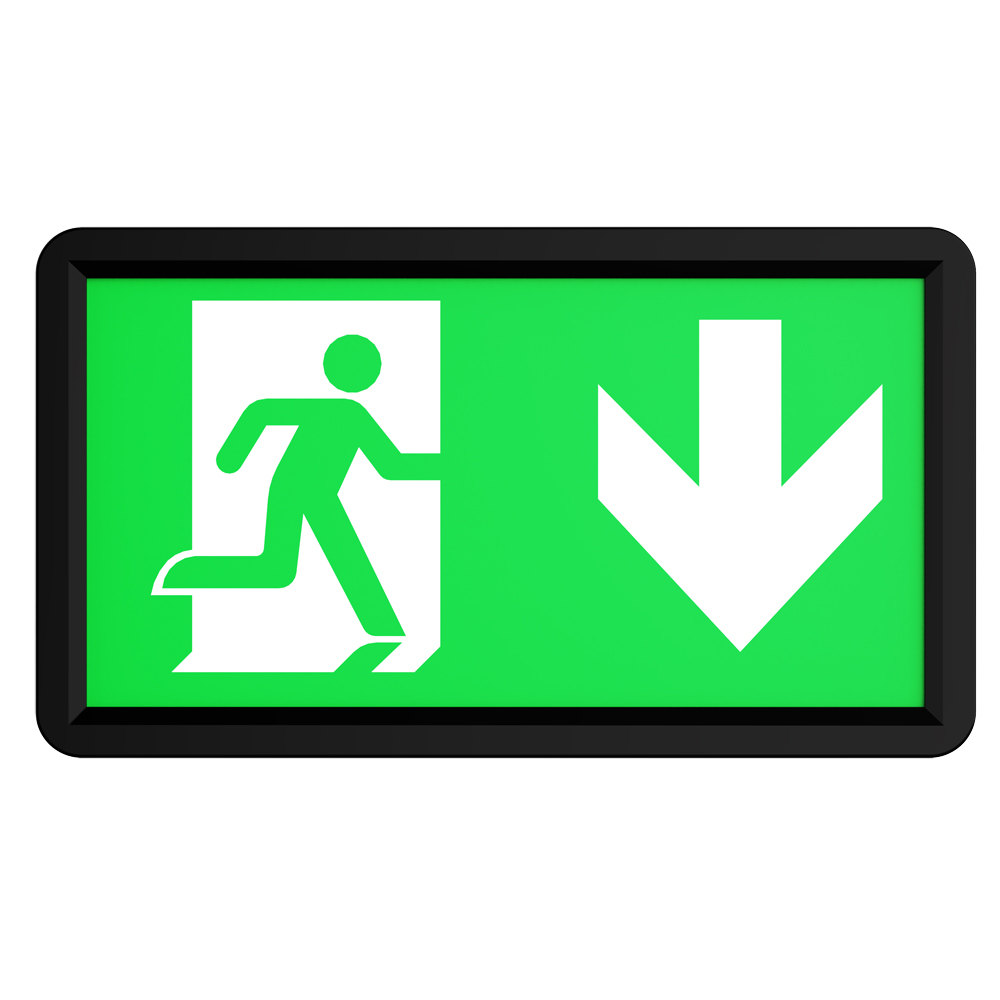

Xport E4 Emergency Exit Sign with Steel Exit Box is designed for versatile surface wall mounting and combines cutting-edge technology with a sleek design.
It offers a clear viewing distance of up to 30 meters, providing exceptional safety and functionality.
Featuring Luminleds SMD 2835 LEDs, the Xport E4 ensures high brightness and energy efficiency.
It is available in both manual test and self-test versions to accommodate various maintenance preferences.
With a robust 3-hour emergency operation time, the Xport E4 guarantees extended safety and visibility during emergencies.
It is powered by a self-contained LiFePO4 3.2V 1600mAh battery, delivering 1W of emergency power and lasting up to 3 hours.
The Xport E4 Emergency Exit Sign is ideal for a range of commercial and industrial settings, offering reliable performance and modern aesthetics.
Ensure safety and compliance with this advanced emergency lighting solution.
Relevant standard
EN55015
EN61347
EN60598-2-22
IEC62133/EN62620
IEC60570:2003+A1:2017+A2:2019
AS/NZS60598.1:2017+A1:2017+A2:2020
AS 60598.2.22:2019
AS/NZS 2293.3:2018+A1:2021
Bodofor® LiFePO4 Battery Pack
4 years warranty
– Intelligent battery management technology via smart IC:
over-charge, over-current, short-circuit and deep discharge protection for battery.
DATASHEET
| Item | Part Number | E4M43W | E4S43W |
| Description | Surface Mounted LED Emergency Exit Escape Sign Luminaire | ||
| Working | Mode of Operation | Maintained & Non-maintained | |
| Input | Voltage& Frequency | 220-240Vac , 50/60HZ | |
| PowerConsumption | 4W | ||
| Output | Light Source | Bridgelux High Lumen SMD2835 | |
| Luminous Flux | 60lm ( Maintained), 200lm ( Emergency) | ||
| Emergency Power | 1 .2w | ||
| Emergency Duration | > 180 minutes | ||
| Controls | Charger | 24hrs intelligent 3-stage charger with battery management system | |
| Emergency | Protection | Overcharge , low voltage disconnect , overcurrent , short circuit | |
| Testing Facility | Manual test | Self test | |

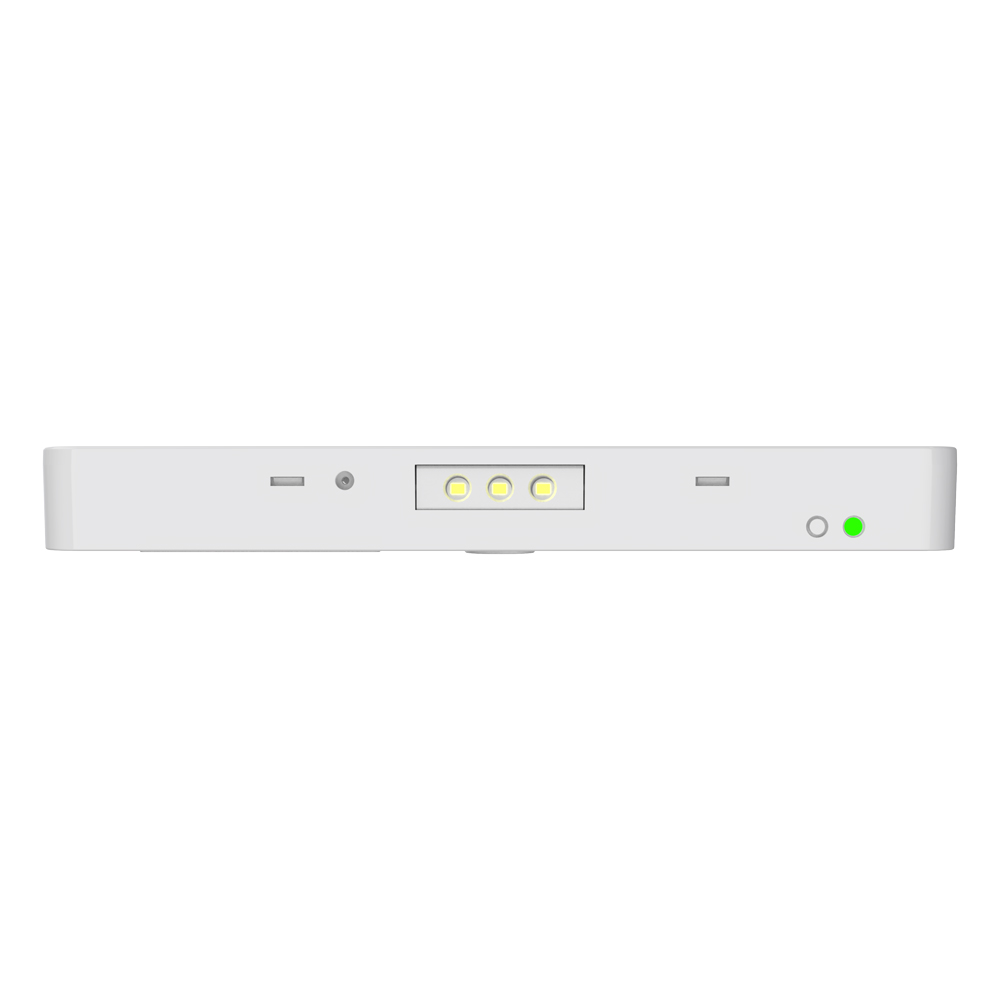

| Indicators | Battery charger green LED , Function failure through red LED. | ||
| Physical | Material | CRCA steel sheet with white powder coating , Diffuser: PMMA | |
| Finishing Color | White | ||
| Dimensions LxWxH | 390mm x 60mm x 192mm | ||
| IP Rating | IP20 | ||
| Weight | 1.15kg | ||
| Warranty | 5 years on product , 4 years on battery | ||
| Environment | Operating Temperature | 0° to 50° C | |
| Relative Humidity | 0 to 95% | ||
| Compliance | Standards | CE/UKCA/ RCM , IEC 60598-1 , IEC 60598-2-2 , IEC60570 ,AS/NZS 2293 .3 | |
| Viewing distance | 30M | ||
| Accessories | Replaceable Battery | P/ N : 1 1 16-01 | Bodofor® 18650 LiFe PO4 3 .2V 1600mA 01 | |
※ Central Battery Optional
Suitable for central battery applications that use a nominal AC or DC supply of 110V to 240V that includes a hold-of input toinhibit the LED driver output when a mains supply is connected.

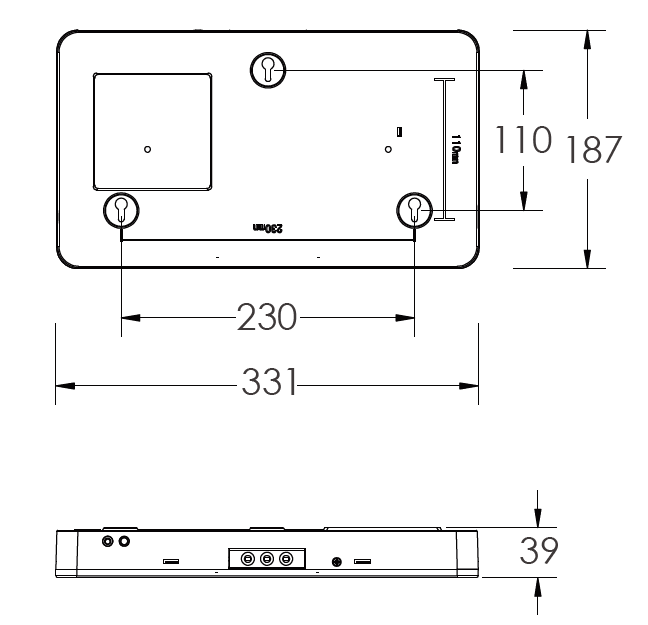

Dimensions(Unit:mm)
