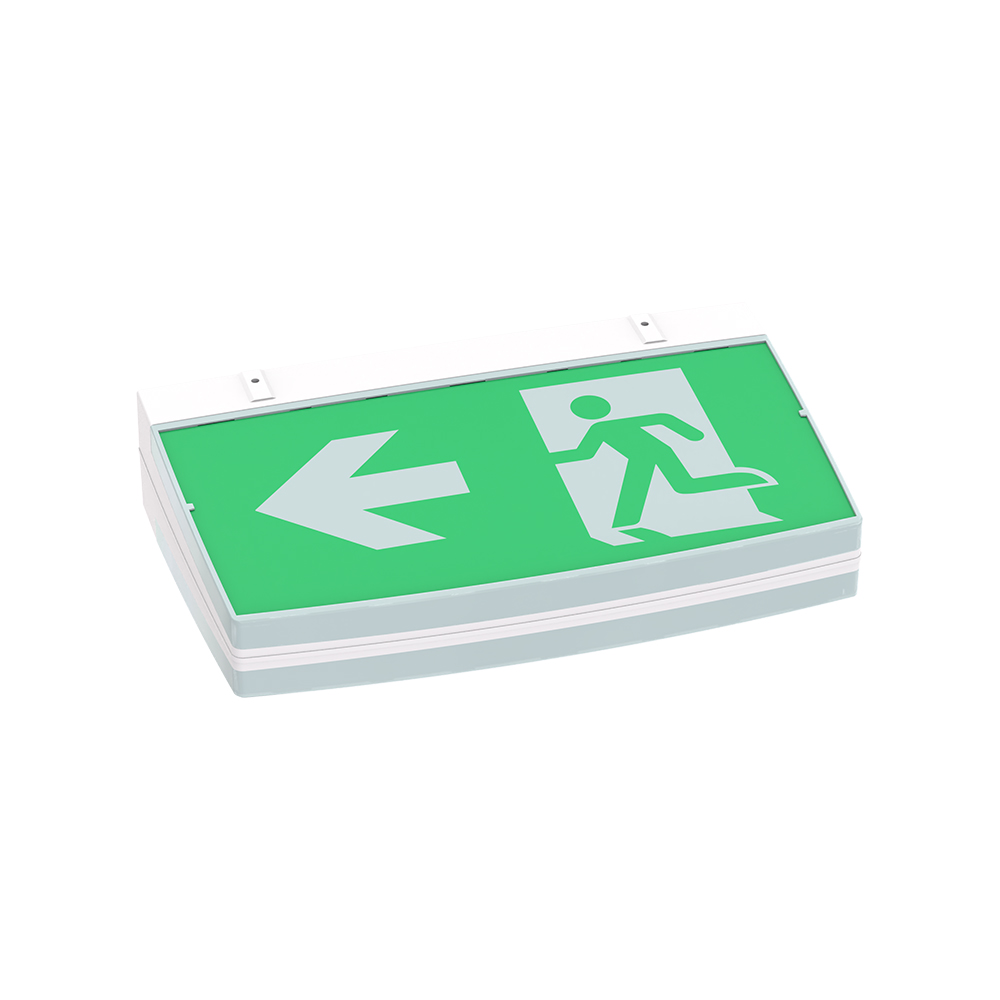

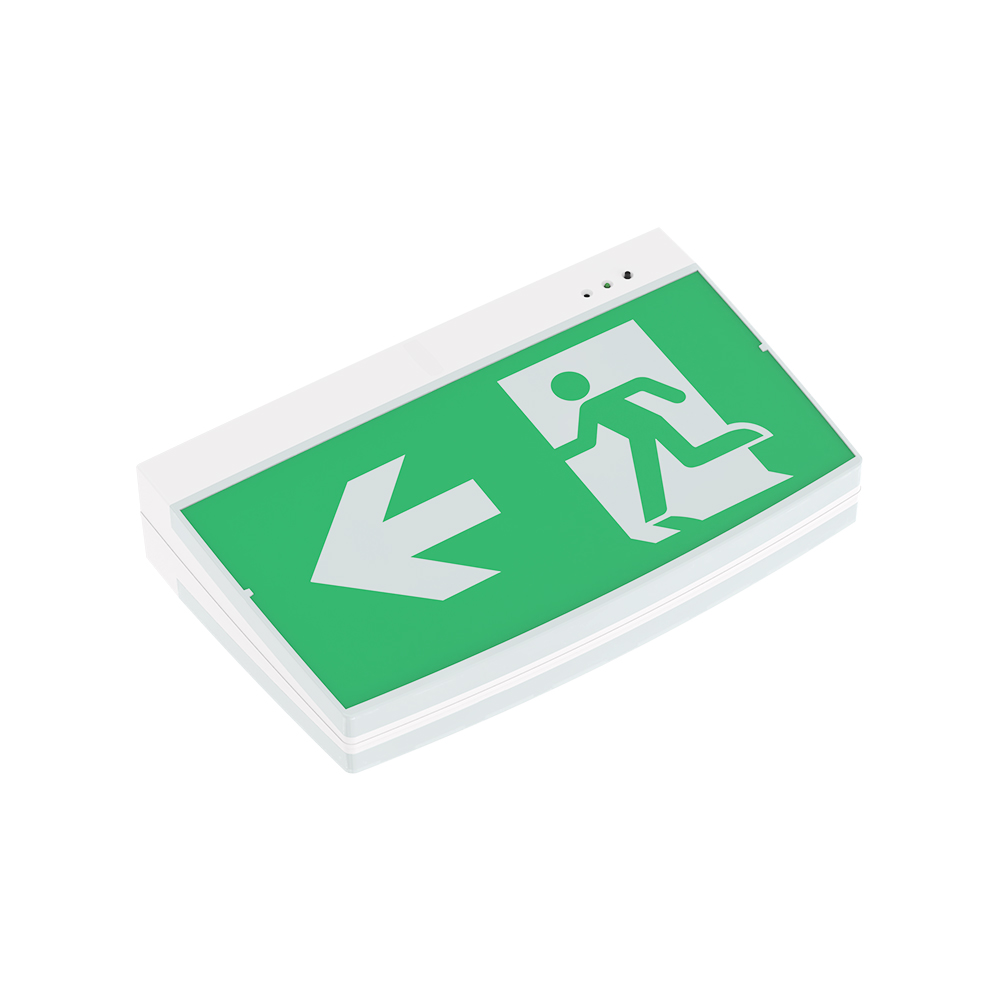

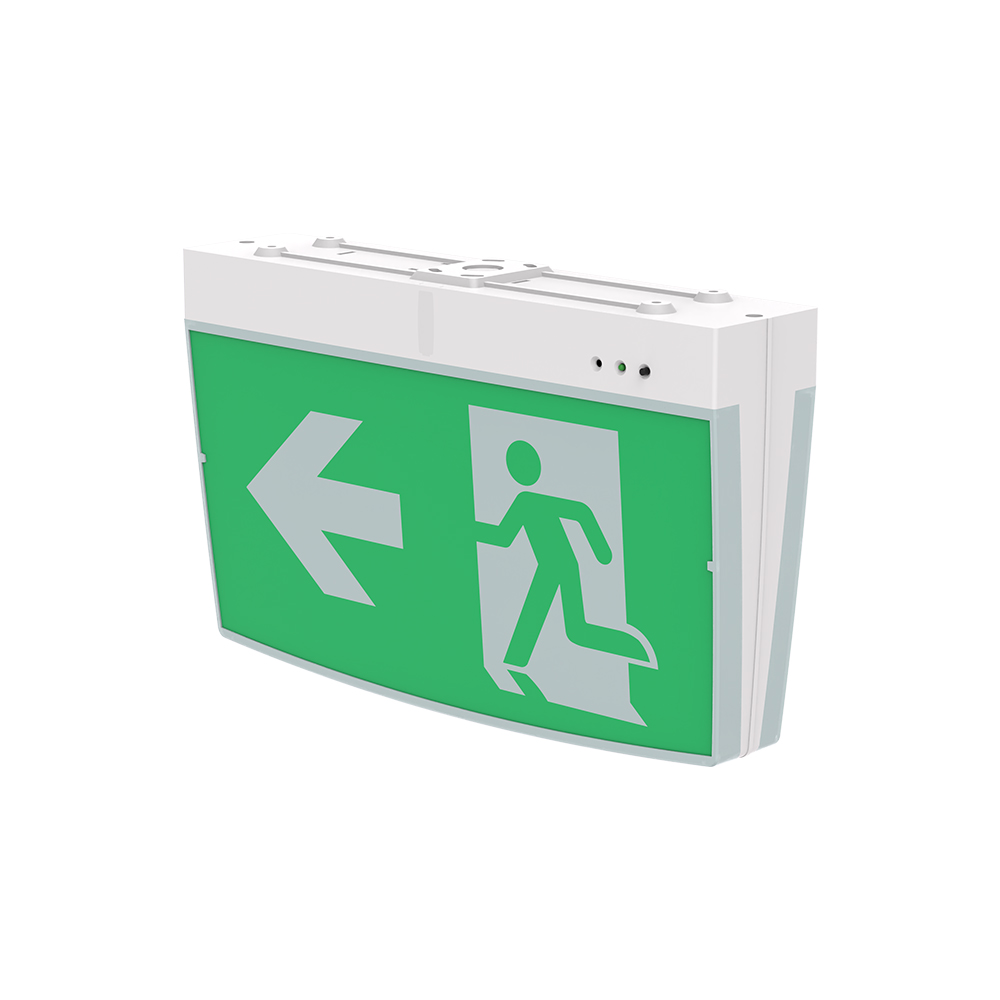

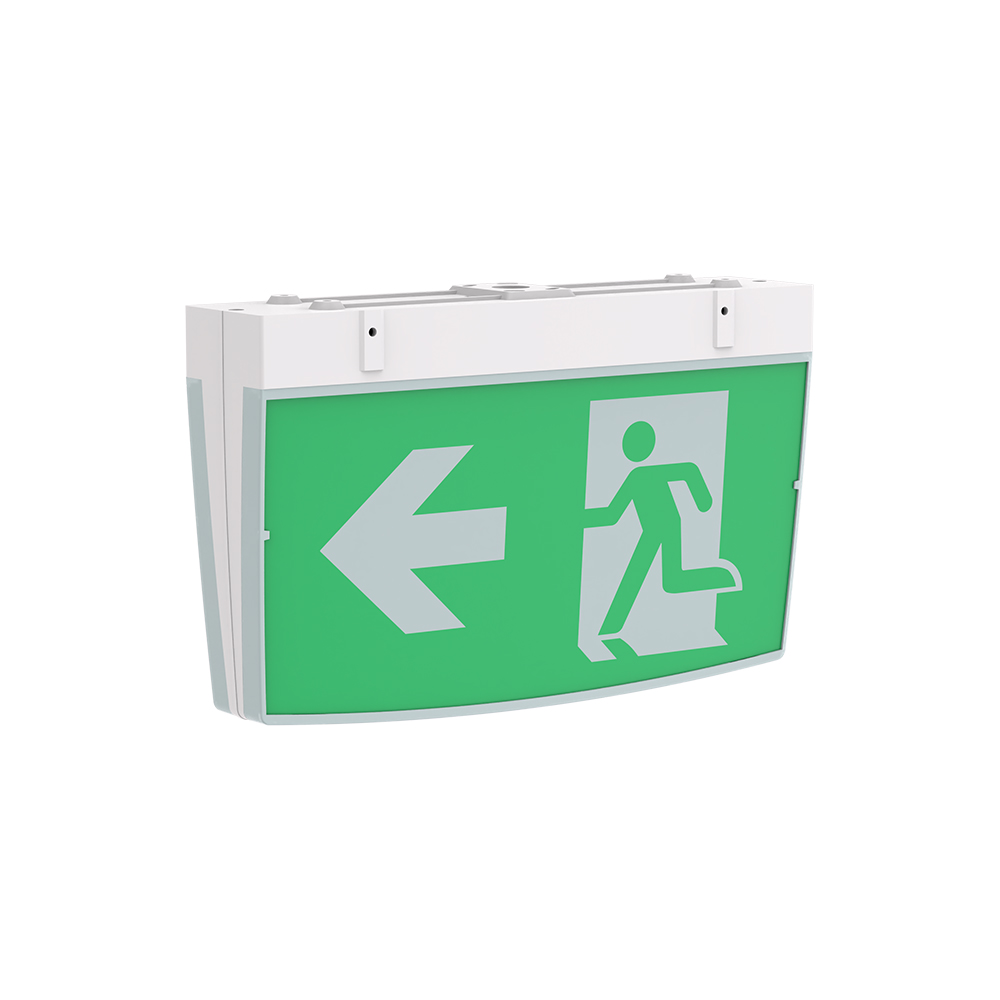

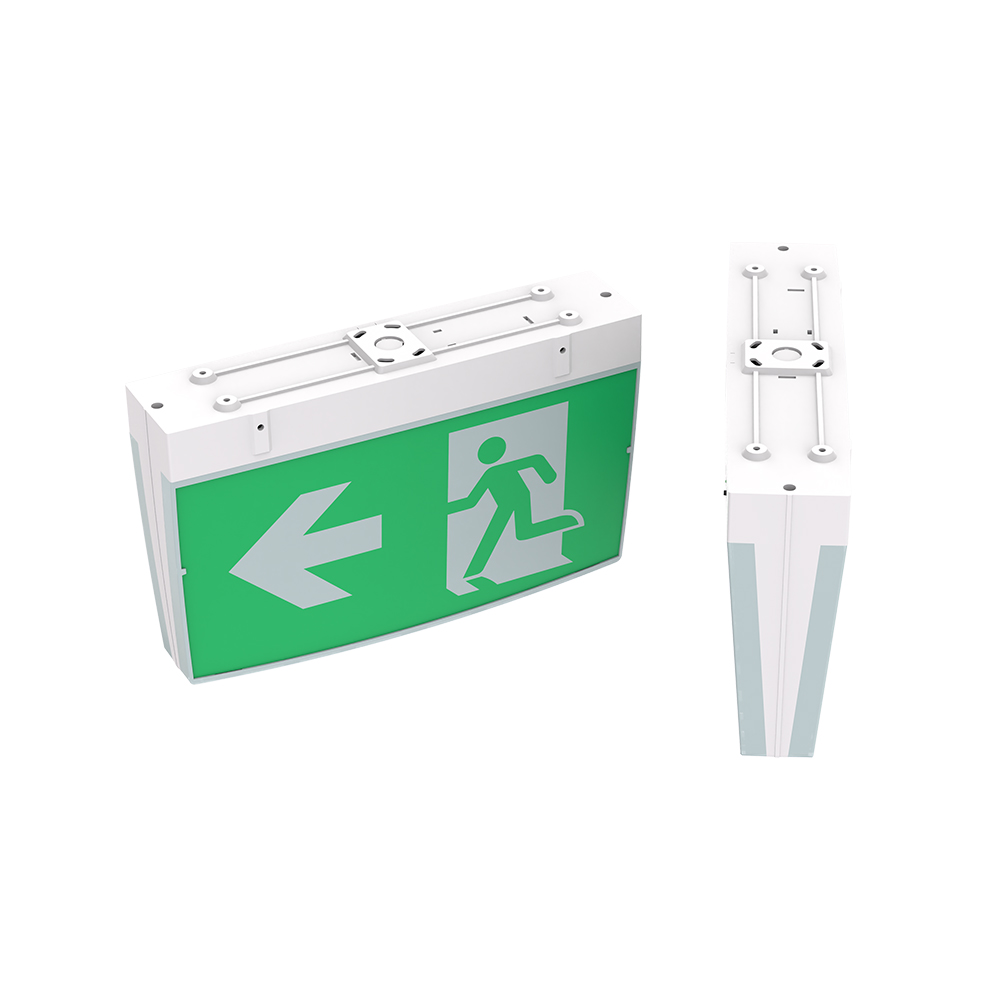

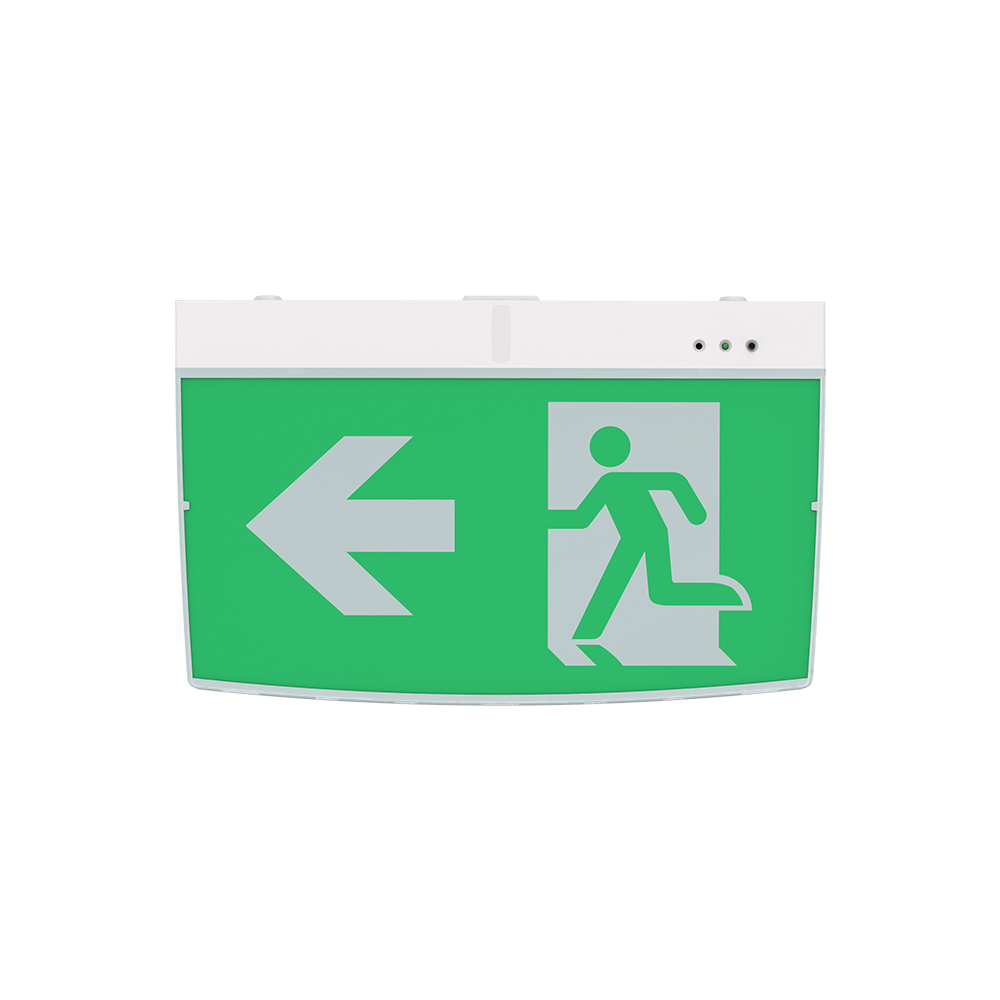

Xport E5 Emergency Box Exit Sign is designed for versatile surface ceiling Quick Fit mounting, combining advanced technology with ease of installation.
It offers a clear viewing distance of up to 24 meters, ensuring exceptional safety and functionality.
Featuring Luminleds SMD 2835 LEDs, the Xport E5 provides high brightness and energy efficiency. It is available in both manual test and self-test versions to accommodate various maintenance needs.
With a robust 3-hour emergency operation time, the Xport E5 guarantees extended safety and visibility during emergencies.
Powered by a self-contained LiFePO4 3.2V 1600mAh battery, it delivers 1W of emergency power and lasts up to 3 hours.
The Xport E5 Emergency Box Exit Sign is ideal for diverse commercial and industrial settings, offering reliable performance and modern aesthetics.
This advanced emergency lighting solution ensures both safety and compliance.
Relevant standard
IEC 60598-1:2014+A1:2017
IEC 60598-2-22:2014+A1:2017
IEC60570:2003+A1:2017+A2:2019
AS/NZS60598.1:2017+A1:2017+A2:2020
AS 60598.2.22:2019
AS/NZS 2293.3:2018+A1:2021
Bodofor® LiFePO4 Battery Pack
4 years warranty
– Intelligent battery management technology via smart IC:
over-charge, over-current, short-circuit and deep discharge protection for battery.
DATASHEET
| Item | Part Number | E5M43W | E5S43W |
| Description | Surface Mounted 24M Quick Fit Exit Box | ||
| Working | Mode of Operation | Maintained | |
| Input | Voltage& Frequency | 220-240Vac , 50/60HZ | |
| PowerConsumption | 4W | ||
| Output | Light Source | Bridgelux High Lumen SMD2835 | |
| Luminous Flux | 60lm ( Maintained), 40lm ( Emergency) | ||
| Emergency Power | 1 .0W( Maintained) ,0 . 7W( Emergency) | ||
| Emergency Duration | > 180 minutes | ||
| Controls | Charger | 16hrs intelligent 3-stage charger with battery management system | |
| Emergency | Protection | Overcharge , low voltage disconnect , overcurrent , short circuit | |
| Testing Facility | Manual test | Self test | |
| Indicators | Battery charger green LED , Function failure through red LED. | ||
| Physical | Material | 850℃ UL94V0 Flame-retardant polycarbonate | |
| Finishing Color | White | ||
| Dimensions LxWxH | 350mm x 79mm x 219mm | ||
| IP Rating | IP20 | ||
| Weight | 820g | ||
| Warranty | 5 years on product , 4 years on battery | ||
| Environment | Operating Temperature | 0° to 50° C | |
| Relative Humidity | 0 to 95% | ||
| Compliance | Standards | SAA/ RCM , IEC 60598-1 , IEC 60598-2-2 ,AS/NZS 2293 .3 | |
| AS/NZS 2293 Classification | C0/D3 .2 ,C90/D2 | ||
| Electric class ( 1 , 2 , 3) | 2 | ||
| Accessories | Replaceable Battery | P/ N : 1 1 16-01 | Bodofor® 18650 LiFe PO4 3 .2V 1600mA 01 | |
※ Central Battery Optional
Suitable for central battery applications that use a nominal AC or DC supply of 110V to 240V that includes a hold-of input toinhibit the LED driver output when a mains supply is connected.

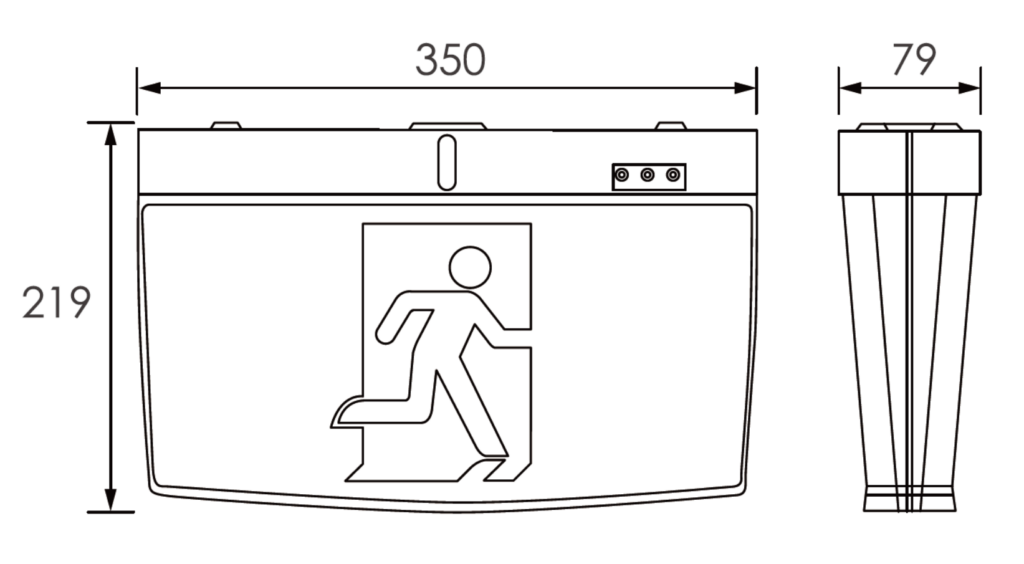

Dimensions(Unit:mm)
